ʻO ka wehewehe ʻana i ka Papa Keaukaha LCD 7 ʻīniha
Ke hōʻike nei mākou i kahi ākea ākea o nā papa hoʻokele LCD i hoʻolālā ʻia e hoʻohuli i nā pilina lehulehu e like me RGB, LVDS, MIPI, a me EDP i VGA a i ʻole HDMI, a laila e hōʻoiaʻiʻo ai i ka hoʻohālikelike ʻana me nā hoʻonohonoho hōʻike like ʻole. ʻO kā mākou mau papa hoʻololi hōʻailona LCD e maʻalahi i ka hoʻololi ʻana ma waena o kēia mau mea pili. Eia kekahi, hāʻawi kā mākou IIC-USB bridgeboard i mea hoʻokele -free, plug-a- solution, ʻoiai ua kūpono kā mākou papa hoʻokele USB me nā ʻōnaehana hana like ʻole e like me Windows, Linux, Android, a me MCU.

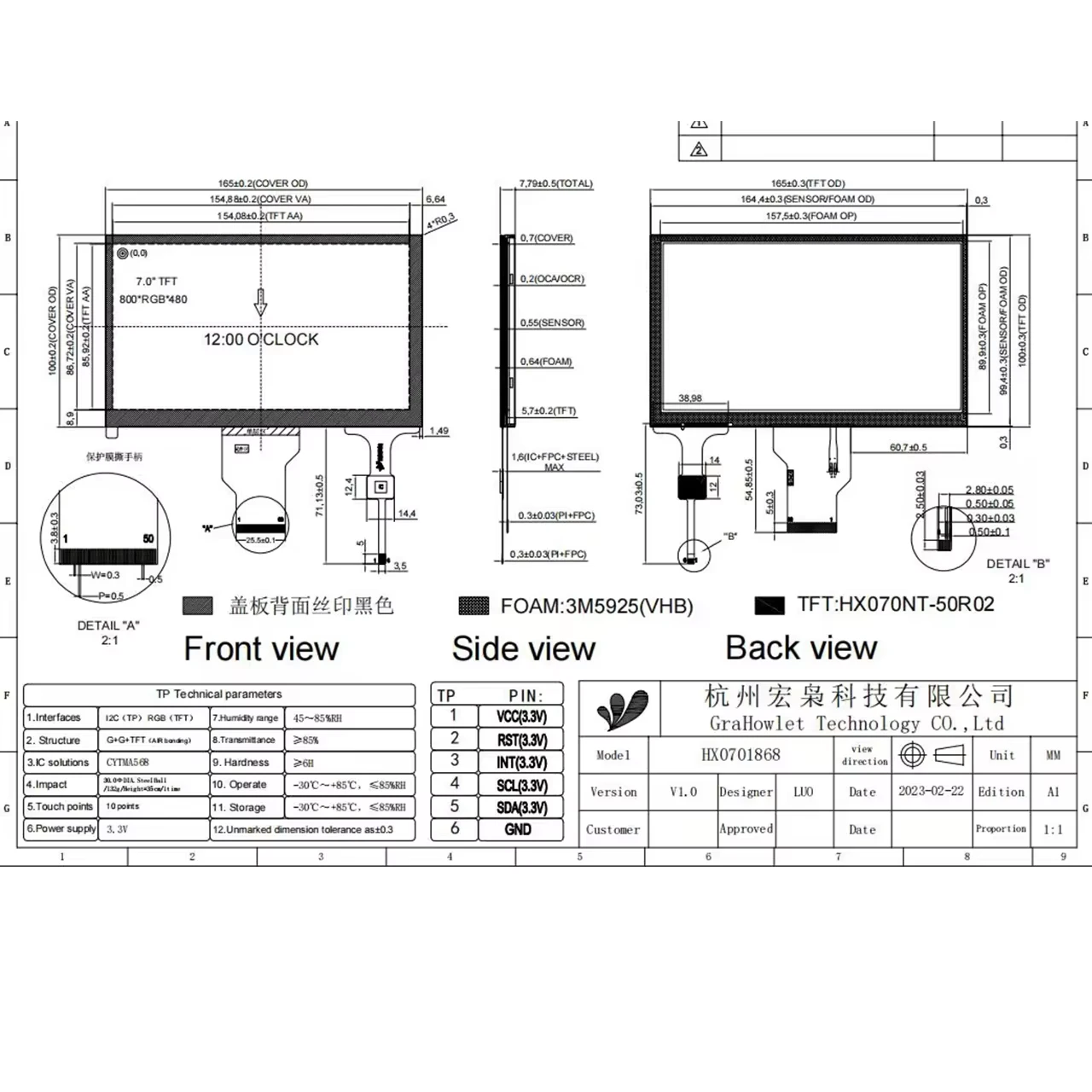

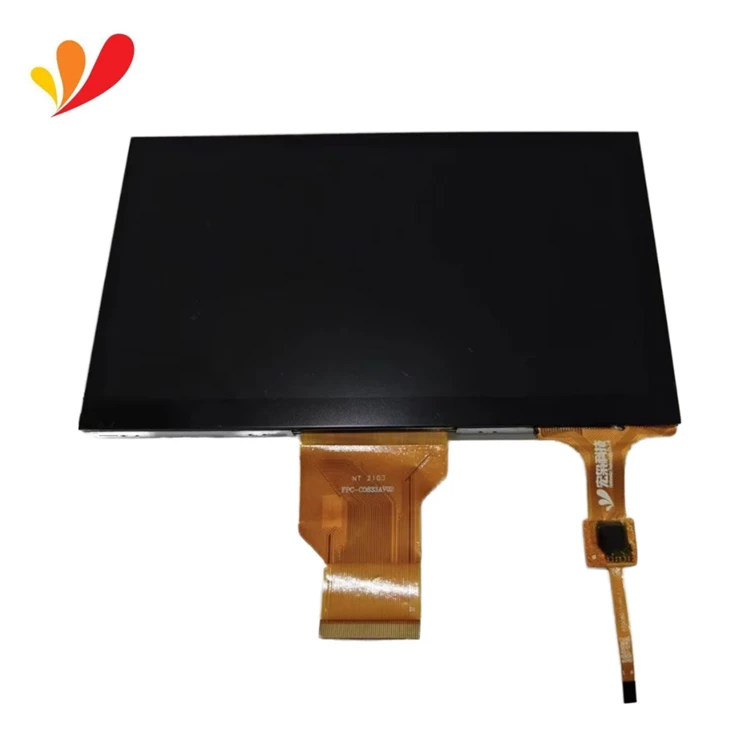

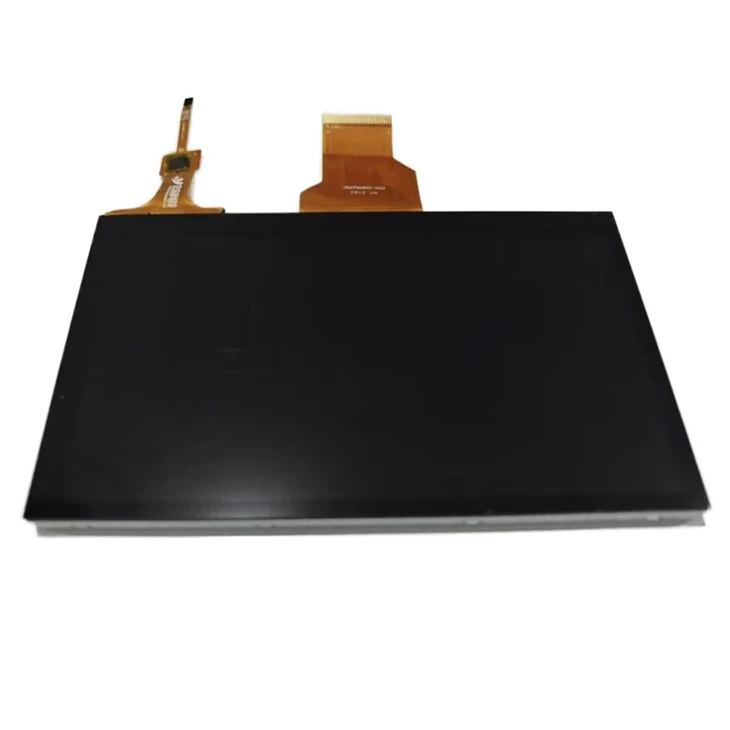

ʻO ka HX0701868 he 7-}ʻīniha paʻi LCD me ka hoʻonā o 800x480, e hōʻike ana i kahi kikowaena RGB kūpono no ka ʻoihana, home akamai, a me nā noi lapaʻau. Hāʻawi kēia hōʻike hoʻonā kiʻekiʻe i nā hiʻohiʻona akaka a me nā hiʻohiʻona, e kūpono ana ia no kahi ākea o nā mea hana a me nā ʻōnaehana. Me kona nui paʻa a me ka maʻalahi, 7 Inch Touch Screen LCD me 800x480 RGB Interface he koho hilinaʻi no ka hoʻohui ʻana i nā papahana like ʻole a me nā kaiapuni.
|
Helu kumu hoʻohālike |
HX0701868 |
Hoʻolālā |
aniani+aniani |
|
IC hooponopono |
Cypress |
ʻōlinolino |
500/m² |
|
ʻIkepili PCAP |
IIC/USB |
ʻO ka nānā ʻana |
75/75/70/75 |
|
TFT Interface |
RGB/HDMI/VGA |
Hōʻike Anana |
165.0(W))x100.0(H)5.7(D) |
|
ʻAspect Ratio |
16:10 |
Wahi Hana (mm) |
154.08(W) × 85.92(H) |
|
Olelo Hooholo |
800*480 |
Hoʻokō (makahiki) |
1-makahiki |
|
|
|||
|
|
Nīnau Nīnauele
Nīnau: Hāʻawi kāu 7 inch Touch Screen LCD i nā hana mana mamao, a hiki iā ʻoe ke hāʻawi i nā lawelawe maʻamau e pili ana i nā koi o ka mea kūʻai aku?
A: ʻAe, hele mai kā mākou LCD me nā hana mana mamao koho, e ʻae i nā mea hoʻohana e hoʻoponopono kūʻokoʻa i nā hoʻonohonoho hōʻike. Eia kekahi, hāʻawi mākou i nā lawelawe maʻamau e hoʻokō i nā koi o ka mea kūʻai aku, e hōʻoia ana i kā mākou papa hoʻokele LCD a me nā huahana ʻē aʻe e kūlike me kā lākou pono.
Nīnau: Inā makemake kā mākou huahana i nā nui like ʻole o nā hōʻike TFT LCD, hiki iā ʻoe ke hāʻawi i ke kākoʻo kūpono?
A: ʻOiaʻiʻo. Loaʻa iā mākou ka ʻike nui a me nā kumuwaiwai e hoʻokō i nā koi o nā ʻano nui like ʻole o nā hōʻike. E hana pū kā mākou hui ʻenekinia me ʻoe e hōʻoia i ka hoʻokō ʻana o kēlā me kēia nui o ka hōʻike i kāu mau koi kikoʻī a hiki iā ia ke hāʻawi i nā hoʻonā maʻamau e kūpono i kāu laina huahana.
Nīnau: ʻO wai nā ʻōnaehana hana LCD Touch Screen 7 i kākoʻo i kāu mau hōʻike?
A: Kākoʻo kā mākou hōʻike LCD i nā ʻōnaehana hana like ʻole, me ka Windows, Linux, Android, a me MCU. Hoʻolālā ʻia kā mākou huahana e hōʻoia i ka hoʻohālikelike ʻana me kēia mau ʻōnaehana hana, e hāʻawi ana i kahi ʻike mea hoʻohana maʻalahi. Inā loaʻa nā koi o ka ʻōnaehana hana, hiki i kā mākou hui loea ke hāʻawi i ke kākoʻo kūpono.
Nā huahana pale: 7 inch touch panel tft lcd, Kina 7 inch touch panel tft lcd mea hoʻolako, mea hana, hale hana
